Product Angle

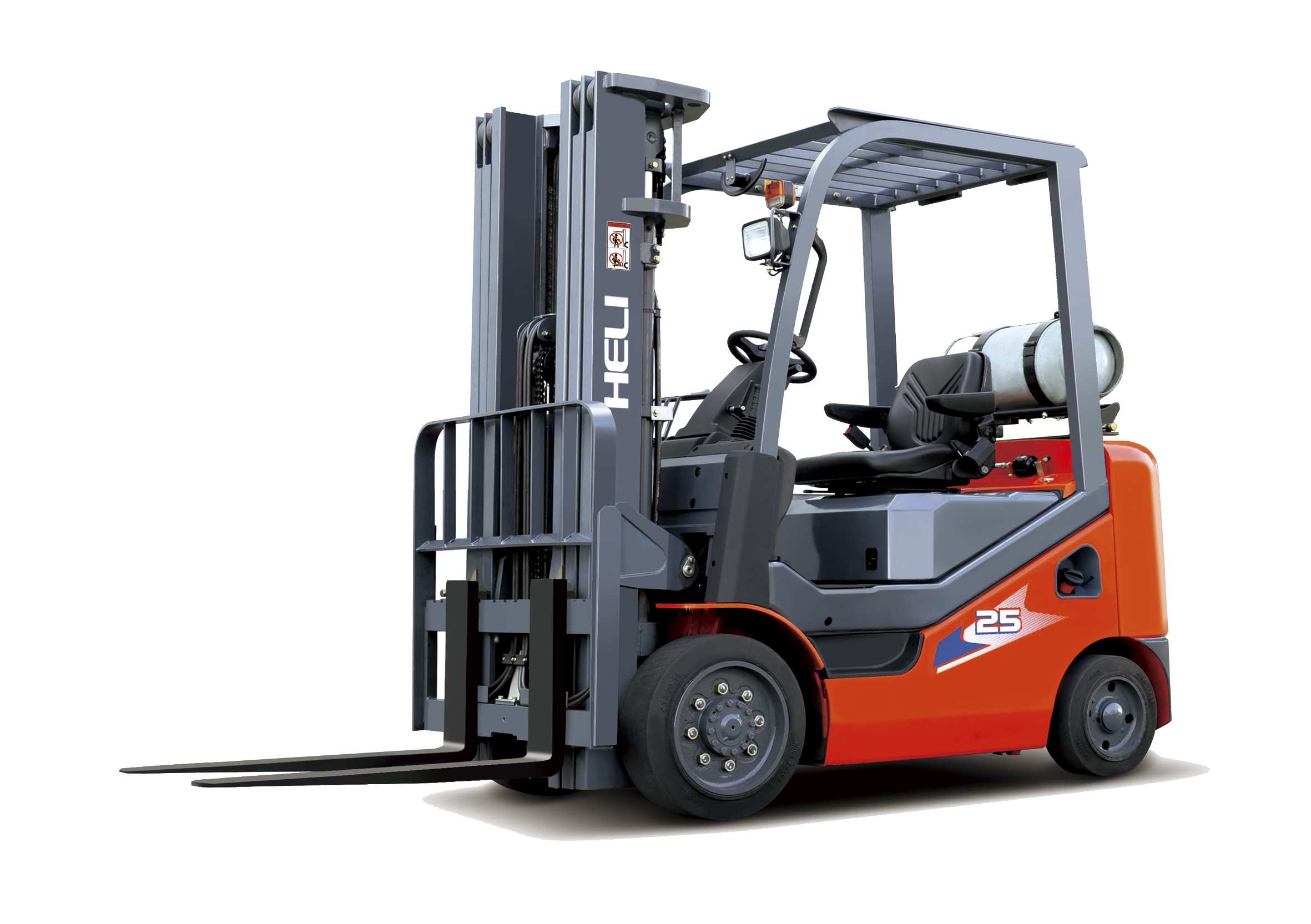

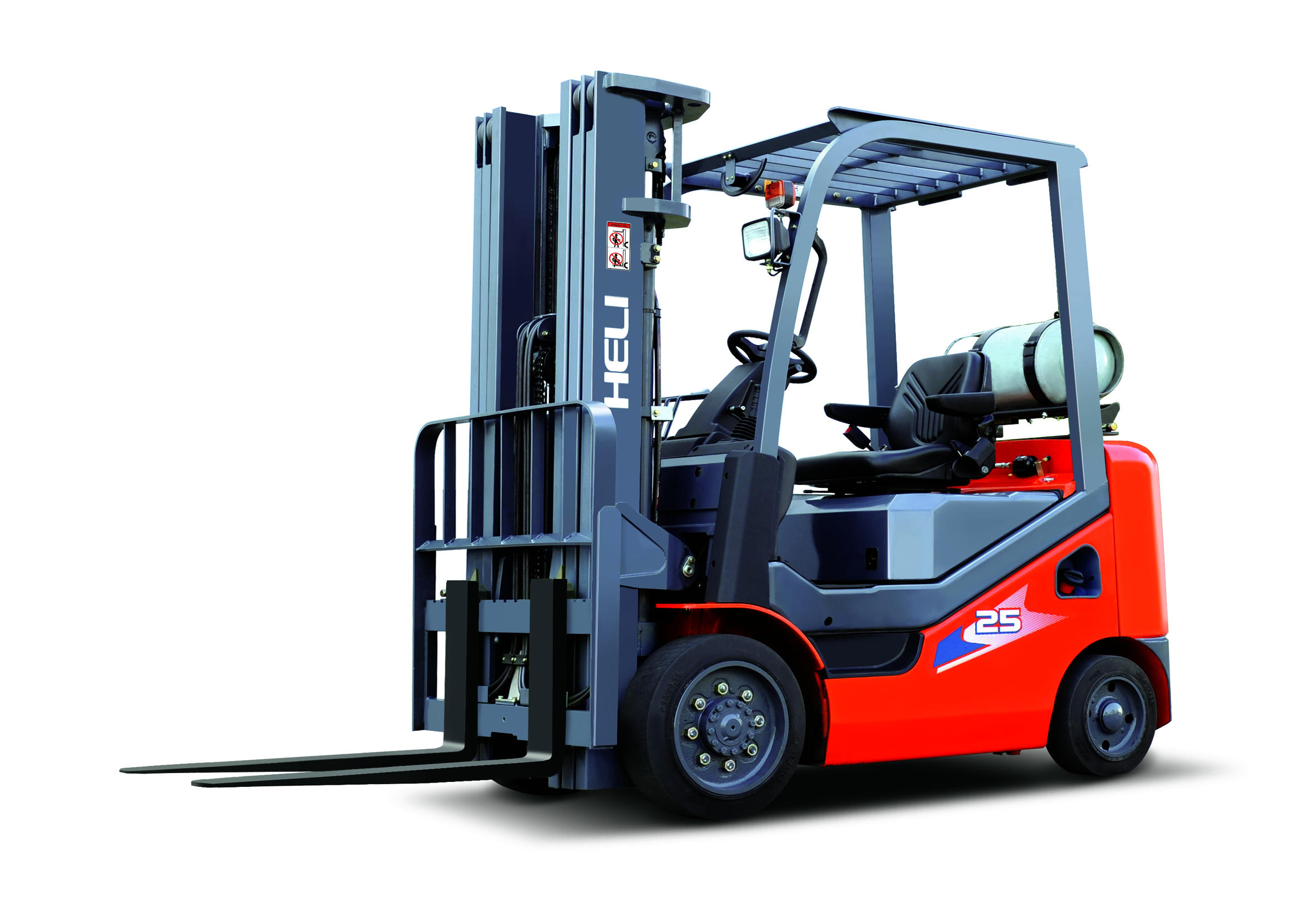

H3C Series 2-3.2t
LPG Forklift-Cushion Tire (4000-6500 lbs. Capacity)
Product Feature
    Technical features remarkably improved, superior quality
    Vibration
    ·Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
    Noise
    Fully enclosed dashboard and lowering damping device inside the lifting system reduces mast shock and vibration.
    Workspace
    ·The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard’s front leg
    ·Semi-suspension seat, small steering wheel, electro-hydraulic direction changing and automobile type double combined switch effectively improve the operation comfort.
    Working efficiency
    ·Small turning radius makes steering flexible and easy.
    ·The truck has fast lifting speed, good sloping ability and high efficiency.
    Energy efficiency
    Load sensing hydraulic system reduces energy consumption.
    Fully electric control engine has large power and low energy consumption.
    The LPG or gasoline engine has good emission performance
    ·The truck can effectively prevent the volatilization of the fuel with the pressure fuel cap.
    Reliability
    ·The hot air isolating device, optimized thermal duct and the aluminum plate-fin type radiator improve cooling ability and ensure engine working reliability.
    ·The optimized design of key parts including frame, mast, overhead guard and steering axle improve the truck’s safety and reliability.
    Maintainability
    ·Engine hood open angle increased to 80°, contributes to quick and convenient maintenance.
    ·Smaller Front floor board makes it more convenient to maintain the transmission box.
The main parameter
Identification Series H3C Series
Model CPYD20C CPYD25C CPYD30C CPYD32C
Rated capacity lb 4000 5000 6000 6500
Load center in 24 24 24 24
Dimensions Overall height(overhead guard) in 83.0 83.0 83.0 83.0
Overall length(with fork/without fork) in 128.7/92.5 136.8/94.5 140/97.8 141/99
Overall width (single Tyre) in 42.0 42.0 44.0 44.0
Min.turning radius(exterior)(A single tyre is the same double tires) in 76 78.7 80.7 81.9
Weight Total weight lb 8466 9480 10725 11067
Wheels,Chassis Tyre size(front/rear) in 21×7-15/16×6-10.5 21×7-15/16×6-10.5 21×8-15/16×6-10.5 21×8-15/16×6-10.5
Performance Max.traveling speed (Loaded/Unloaded) mph 10.8/10.8 10.8/10.8 10.8/10.8 10.8/10.8
Engine mode KUBOTA WG2503
Engine rated power HP/rpm GAS:57.4/2600 LPG:58.3/2600
Engine rated torque (ft*Ib)/rpm GAS:128.7/1400 LPG:120.7/1800
Engine cylinder number-bore x stroke in 4-3.5x40.3
piston displancement cu in 155.7
